Deep Cycle UPS AGM Front Terminal 12v 150ah Battery for Solar Power System

FOBERRIA FT series is specially designed for telecom use with 12 years design life in folat service.

By adopting a new AGM separator and centralised venting system, the battery can be installed in any position while maintaining high reliability.

The demensions of the FT series is designed for 19″ and 23″ cabinet installation. It’s suitable for UPS/EPS

>Advantages

1. Battery can be installed in any position. Easy instalation and handling.

2. Design for telecom with more than 12years design life.

3. High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.

4. ABS battery case made by LG raw material to increase battery service life.

5. Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.

6. TTP technique not only reduce internal resistance and material cost but also increase battery life.

7. Conduct four large current discharge texting before package to insure battery quality.

8. Full charge before delivery. Buy and use it directly.

>Specification

​

Cells Per Unit	6
Voltage Per Unit	12
Capacity	100Ah @10hr-rate to 1.80V per cell @ 25℃	150Ah @10hr-rate to 1.80V per cell @ 25℃	200Ah @10hr-rate to 1.80V per cell @ 25℃
Weight	31.0KG	43.5KG	61.0KG
Max. Discharge Current	1000A(5 sec)	1500A(5 sec)	1000A(5 sec)
Internal Resistance	Approx. 5.5mΩ	Approx. 5.0 mΩ	Approx. 4.5 mΩ
Recommended Maximum Charging Current Limit	30A	45A	60A
Operating Temperature Range	Discharge: -20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃
Normal Operating Temperature Range	25℃ ± 5 ℃
Float charging Voltage	13.6 to 13.8V DC/unit Average at 25℃
Equalization and Cycle Service	14.4to 14.6V DC/unit Average at 25℃
Self Discharge	Front triminal batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using.
Size	410*109*293MM	550*110*290MM	550*125*317MM

>Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	254	196	117	71.9	43.8	31.2	25.2	21.5	14.8	12.2	6.47
9.9V	246	191	115	70.9	43.6	31.0	25.1	21.4	14.7	12.2	6.46
10.2V	236	184	111	69.1	43.2	30.8	24.9	21.3	14.6	12.2	6.44
10.5V	226	178	108	67.6	42.6	30.6	24.7	21.1	14.5	12.1	6.40
10.8V	213	168	104	65.5	41.5	29.7	24.0	20.5	14.1	12.0	6.36

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	2741	2147	1313	820	508	367	297	255	176	146	77.7
9.90V	2658	2096	1286	808	505	365	295	253	175	146	77.5
10.2V	2549	2017	1247	787	500	362	293	251	174	145	77.3
10.5V	2439	1950	1217	771	493	360	291	250	172	144	76.9
10.8V	2302	1847	1172	747	480	349	282	242	167	143	76.3

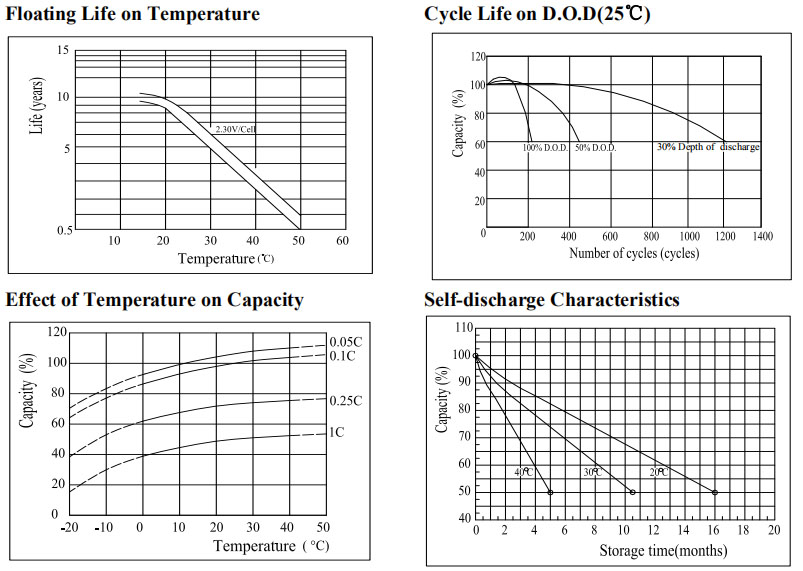

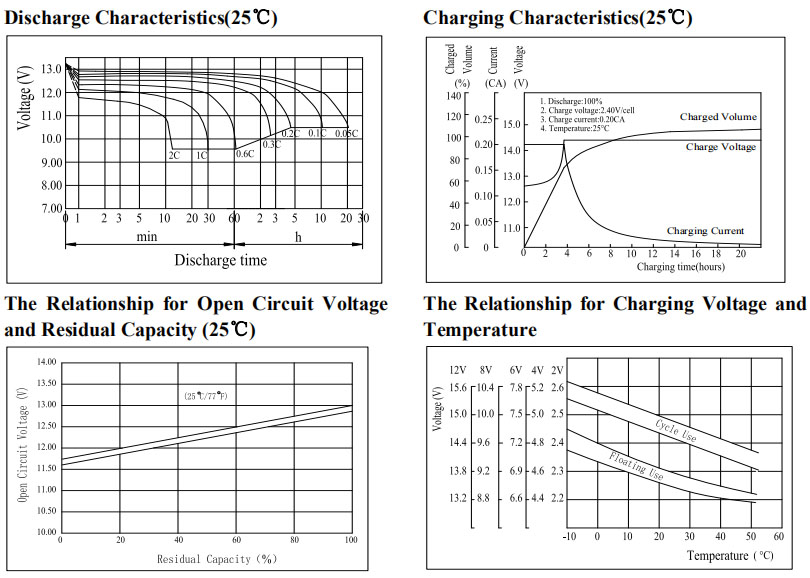

>Discharge diagram

>Application
① Solar and Wind System

② UPS

③ Electronic Apparatus and Equipment

④ Alarm and Security System

⑤ Communication Power Supply

⑥ DC Power Supply

⑦ Emergency Lighting

⑧ Backup Power for Testing and Measuring Instrument

⑨ Telecommunication System

⑩ Fire Alarm and Security System

>Warning

• Replacement of battery shall be performed as per following order. If failed, it may cause fire and explosion. Remove cable from negative terminal first.Connect cable to negative terminal last.

• When connect cable to battery, make sure not to get changed post of +and -. It may cause the damage of electronic components or fire.

• When ueing the battery ,handle with care,sulfuric acid may cause blindness or severe burn.

>Caution

• When moving battery, be careful not to drop the battery , which is heavy, Do not shake the battery with handle, if there is the handle, It may cause the injury.

• Do not shore the battery at the following places. High temperature and humidity. Being exposed to rain,snow, direct sunshine.

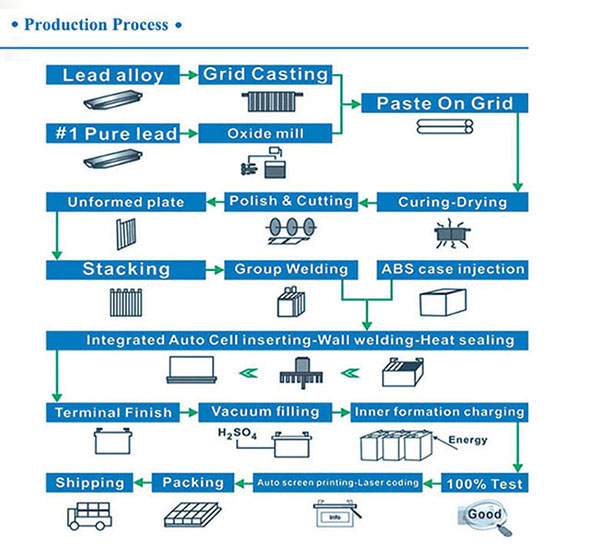

>Production process

>FAQ

Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers. 50-500pcs sample order is available.

for sample checking is available.

Q3. Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?

A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate your company have?

A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6. What is your warranty time for VRLA battery ?

A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.

Q7. Why battery has different capacity at different hour rate?

A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current.

For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A.

With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.

Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?

A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.

Q9. How to proceed with an order?

A9. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.

Q10: How about the delivery time?

A10: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
