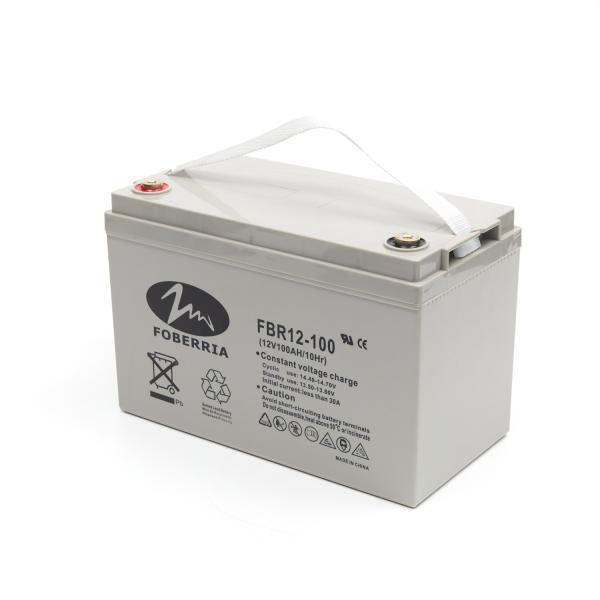

Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System

>

• This SLA battery fits applications like mobility or wheelchair, scrubber, generator, lawn & garden, trolling motors.Also great for commercial customers in schools, healthcare, and property management.
• This SLA battery is also great for performance cyclical applications. Please note: Do not use in backup or float applications
• This deep cycle battery has at least 40% more cycles than the general purpose batteries used in the same application
• This sealed lead acid battery has a maintenance-free and spill proof design.
• Volume discounts available please call store for details
• This trusted FOBERRIA SLA battery is backed by a 1 year warranty

> FBR12-90 lead acid battery Specification

Model NO.		FBR12-90	FBR12-100
Nominal Voltage		12V	12V
Capacity(25ºC)	10HR(10.8V)	90Ah	100Ah
	5HR(10.5V)	79Ah	88Ah
	1HR(9.60V)	55.6Ah	61Ah
Dimensions	Length	306±2mm	330±2mm
	Width	169±2mm	171±2mm
	Height	211±2mm	214±2mm
	Total height	214±2mm	220±2mm
Approx. Weight		27kg±4%	29.5kg±4%
Terminal type		F14	F14
Internal resistance(Fully charged,25ºC)		Approx 5mΩ	Approx 4.5mΩ
Capacity affected by temperature(20HR)	40ºC	102%	102%
	25ºC	100%	100%
	0ºC	85%	85%
	-15ºC	65%	65%
Self-discharge(25ºC)	3month	Remaining Capacity:91%	Remaining Capacity:91%
	6month	Remaining Capacity:82%	Remaining Capacity:82%
	12month	Remaining Capacity:65%	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)	25ºC±3ºC(77ºF±5ºF)
Operating temperature range	Discharge	-15ºC-50ºC(5ºF-122ºF)	-15ºC-50ºC(5ºF-122ºF)
	Charge	-10ºC-50ºC(14ºF-122ºF)	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage(25ºC)		13.5 to 13.8V Temperature compensation:-18mV/ºC	13.5 to 13.8V Temperature compensation:-18mV/ºC
Cyclic charging voltage(25ºC)		14.5 to 15.00V Temperature compensation:-30mV/ºC	14.5 to 15.00V Temperature compensation:-30mV/ºC
Max charging current		27A	30A
Max discharging current		800A(5sec.)	800A(5sec.)
Max discharging current		10years	10years

> Structure and composition

Component	Pos. plate	Neg. plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	82.8	63.8	38.2	23.5	13.9	9.88	7.98	6.82	4.69	3.87	2.05
9.9V	80.4	62.3	37.4	23.1	13.8	9.83	7.94	6.78	4.66	3.86	2.05
10.2V	77	60	36.3	22.5	13.7	9.76	7.88	6.73	4.63	3.85	2.04
10.5V	73.7	58	35.4	22.1	13.5	9.69	7.83	6.69	4.6	3.83	2.03
10.8V	69.6	54.9	34.1	21.4	13.1	9.4	7.59	6.49	4.46	3.8	2.01

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	895	701	428	268	161	116	93.9	80.6	55.7	46.2	24.6
9.90V	868	684	420	264	160	116	93.3	80.2	55.4	46.1	24.6
10.2V	832	659	407	257	158	115	92.7	79.6	55	46	24.5
10.5V	796	636	397	252	156	114	92.1	79.1	54.6	45.7	24.3
10.8V	752	603	383	244	152	111	89.3	76.7	53	45.4	24.2

>Discharge diagram

> Application

1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2. Wind Power System;

3. UPS and computer backup power;

4. Telecommunication system;

5. Power station System;

6. Railway System;

7. Emergency lighting system;

8. Automatic control system;

9. Alarm system for fire protection, security.

>Assembling

SUZHOU FOBERRIA NEW ENERGY TECHNOLOGY CO.,LTD.

"Established in 2012 ,but we start from 2009 ,So we have 10+years experience in lead acid battery.

At the beginning we build the big professional team in the battery production ,So we know everything in the battery production

and we can supply the self -service based on customer requirements. We reorganized from Jiangsu Storage Battery Factory,

professional in the researching, manufacturing and developing of VRLA battery.

Producing products include:

• AGM Batteries

• GEL Batteries

• OPzV Battery

• Flooded Acid Batteries

• Off Grid Solar Batteries

• Solar GEL Batteries

• Telecom Batteries

• Car/Auto Batteries

• Front Terminal Battery

• Lithium batteries and so on.

we have advanced plate casting and pasting machine with the fully automatic assembly lines. And we are going to keep advanced

level in the world.With years of production experience and strong production force, stable and reliable product quality, has won the

confidence of domestic and foreign merchants.

Our products are widely used in UPS,Motorcycle,Automobile ,Electric vehicle,Tourist car,Marine Equipment,Electric Power System,

Solar Power System,Wind Power System,etc. They have a good reputation in domestic and foreign markets.

Our batteries are hot saled in many countries,like as Russia,Turkey,Morocco,Vietnam,Iran,Venezuela and other south America countries.

Even then our products occupied 75% in Russian market.
