1. Excellent safety performance:No electtolyte leakage,battery
swelling and cracking under normal use.
2. Good discharging performance : with smooth discharging voltage
and mild discharging platform.
3. Good resistance to overdischarge:In temperature of 25 degrees
celsius, the fully charged battery discharges with fixed resistance
which is equivalent to the one required by 1ca discharge of the
battery for three weeks, and it can restore capacity over 75%.
4. Good resistance to overcharge:The fully charged battery is proved
to maintain normal open circuit voltage and be without leakage or
batteries swelling or cracking in temperature of 25 degrees celsius
after charging at 0.1ca for 48 hours, and the capacity maintain
over 95%.
5. Good resistance to high current:The fully charged battery is proved
to be without conductive part melted or any appearance deformation
after discharging at 2ca for 5 minutes or 10ca for 5 seconds.
>Application
Control systems, electric toys, emergency lamp, power tools,
medical treatment equipment, alarm system, emergency light system,
standby power supply, UPS and computer standby power supply, power
system, telecommunication system, firefighting equipment standby
power supply, railway station, ship equipment, telephone swiching
system.
> Specification

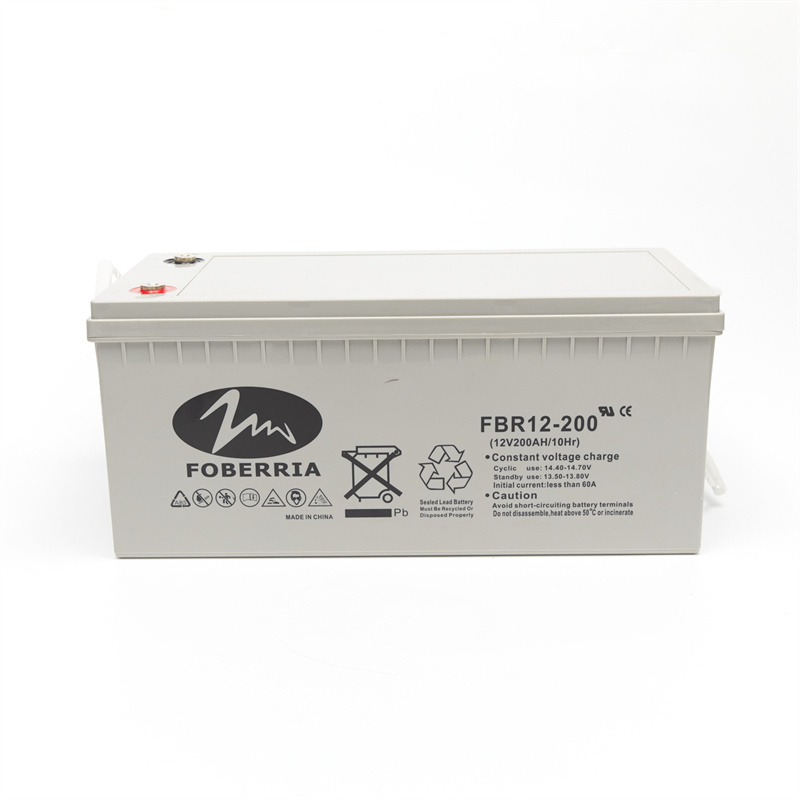

| Battery Model No. | | FBR12-200 |
| Nominal Voltage | | 12V |
| Capacity | 20HR(10.5V) | 200Ah |
| (25ºC) | 10HR(10.5V) | 176Ah |
| 1HR(9.6V) | 124Ah |
| Dimension | Length | 552±2mm |
| Width | 238±2mm |
| Height | 218±2mm |
| Total height | 221±2mm |
| Approx. Weight | 59.5kg±4% |
| Terminal type | F13 |
| Internal resistance(Fully charged,25ºC) | Approx 4mΩ |
| Capacity affected by | 40ºC | 102% |
| Temperature(20HR) | 25ºC | 100% |
| 0ºC | 85% |
| -15ºC | 65% |
| Self-discharge(25ºC) | 3month | Remaining Capacity:91% |
| 6month | Remaining Capacity:82% |
| 12month | Remaining Capacity:65% |
| Nominal operating temperature | 25ºC±3ºC(77ºF±5ºF) |
| Operating | Discharge | -15ºC-50ºC(5ºF-122ºF) |
| temperature range | Charge | -10ºC-50ºC(14ºF-122ºF) |
| Storage | -20ºC-50ºC(-4ºF-122ºF) |
Float charging voltage
(25ºC) | 13.6 to 13.8V
Temperature compensation:-18mV/ºC |
|
Cyclic charging voltage
(25ºC) | 14.5 to 15V
Temperature compensation:-30mV/ºC |
|
| Max charging current | 60A |
| Max discharging current | 1600A(5sec.) |
| Designed floating life(20ºC) | 10years |
>Structure and composition
| Component | Positive plate | Negative plate | Container | Cover | Separator | Electrolyte | Safety valve | Terminal |
| Raw material | Lead dioxide | Lead | ABS | ABS | AGM | Sulfuric acid | Rubber | Copper |
>Constant Current Discharge Characteristics(A,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.6V | 262 | 202 | 121 | 74.2 | 43.8 | 31.2 | 25.2 | 21.5 | 14.8 | 12.2 | 6.47 |
| 9.9V | 254 | 197 | 118 | 73 | 43.6 | 31 | 25.1 | 21.4 | 14.7 | 12.2 | 6.46 |
| 10.2V | 243 | 190 | 115 | 71.2 | 43.2 | 30.8 | 24.9 | 21.3 | 14.6 | 12.2 | 6.44 |
| 10.5V | 233 | 183 | 112 | 69.7 | 42.6 | 30.6 | 24.7 | 21.1 | 14.5 | 12.1 | 6.4 |
| 10.8V | 220 | 173 | 108 | 67.6 | 41.5 | 29.7 | 24 | 20.5 | 14.1 | 12 | 6.36 |
>Constant Power Discharge Characteristics(Watt,25ºC)
| F.V/Time | 10min | 15min | 30min | 60min | 2h | 3h | 4h | 5h | 8h | 10h | 20h |
| 9.60V | 2825 | 2214 | 1353 | 845 | 508 | 367 | 297 | 255 | 176 | 146 | 77.7 |
| 9.90V | 2741 | 2160 | 1326 | 833 | 505 | 365 | 295 | 253 | 175 | 146 | 77.5 |
| 10.2V | 2628 | 2081 | 1285 | 812 | 500 | 362 | 293 | 251 | 174 | 145 | 77.3 |
| 10.5V | 2514 | 2010 | 1254 | 795 | 493 | 360 | 291 | 250 | 172 | 144 | 76.9 |
| 10.8V | 2373 | 1904 | 1208 | 770 | 480 | 349 | 282 | 242 | 167 | 143 | 76.3 |
>Discharge diagram
>Production process
>Workshop scene
>FAQ
Q1: How to choose the right battery?
A1: Tell us your demand, then our sales will recommend a suitable
battery for you.
Q2. Do you have any MOQ limit?
A2: Yes, we have MOQ for mass production, it depends on the
different model numbers.
50-500pcs sample order is available. for sample checking is
available.
Q3. Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and
confirm the design firstly based on our sample.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make
your problem to solve easily.
Q5:. What certificate your company have?
A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test
report, Patent for gel technology and other Chinese honor.
Q6. What is your warranty time for VRLA battery ?
A6: It depends on battery capacity, depth of discharge, and battery
usage. Please kindly contact us for accurate information based on
detailed requirements.
Q7. Why battery has different capacity at different hour rate?
A7: The capacity of a battery, in Ahs, is a dynamic number that is
dependent on the discharge current.
For example, a battery that is discharged at 10A will give you more
capacity than a battery that is discharged at 100A.
With the 20-hr rate, the battery is able to deliver more Ahs than
with the 2-hr rate because the 20-hr rate uses a lower discharge
current than the 2-hr rate.
