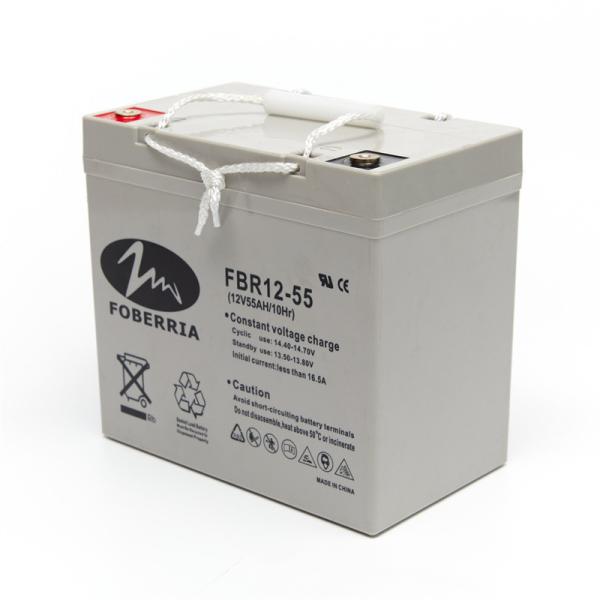

Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS

Ask Lasest Price
Brand Name :	FOBERRIA
Model Number :	FBR12-55
Certification :	CE / ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	60,000 per month
Delivery Time :	25-30days

Add to Cart

Product Details
Company Profile

Sealed Lead Acid Rechargeable Battery 12v 55ah For Scooter / UPS

lead acid rechargeable battery 12v 55ah Sealed AGM battery for Scooter/UPS

> Product Features

1. Good discharge performance

2. Low self-discharge rate:≤3%/month

3. High sealed reaction efficiency≥99％

4. Wide operation temperature:﹣20℃~60℃

5. Tight assembly,low internal resistance

6. Wiring terminals: 2 or more types of wiring terminals, multiple choices

7. Diaphragm: improved AGM diaphragm makes the resistance lower, high assembly pressure increases the service life of deep circulation

8. Shell: high strength ABS (ul94-hb); Ul94-vo optional

9. Terminal sealing: (mechanical + epoxy resin glue) double sealing

>Application

Products are widely used in hybrid wind off-grid power station, household energy storage power generation system, monitoring system,equipment, street lamp, outdoors, electric cars, electric sightseeing cars, street cleaner, sanitation trucks, the uninterrupted power source(UPS), communication base station, and emergency EPS system, etc.

> Specification

Battery Model No.		FBR12-55
Nominal Voltage		12V
Capacity	20HR(10.8V)	55Ah
(25ºC)	10HR(10.5V)	48.4Ah
	1HR(9.6V)	34Ah
Dimension	Length	230±2mm
	Width	140±2mm
	Height	211±2mm
	Total height	215±2mm
Approx. Weight		16.5kg±5%
Terminal type		F14
Internal resistance(Fully charged,25ºC)		Approx 7mΩ
Capacity affected by	40ºC	102%
Temperature(20HR)	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge(25ºC)	3month	Remaining Capacity:91%
	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating	Discharge	-15ºC-50ºC(5ºF-122ºF)
temperature range	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage (25ºC)		13.5 to 13.8V Temperature compensation:-18mV/ºC
Float charging voltage (25ºC)		13.5 to 13.8V Temperature compensation:-18mV/ºC
Cyclic charging voltage (25ºC)		14.5 to 15V Temperature compensation:-30mV/ºC
Cyclic charging voltage (25ºC)		14.5 to 15V Temperature compensation:-30mV/ºC
Max charging current		16.5A
Max discharging current		550A(5sec.)
Designed floating life(20ºC)		10years

>Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	262	202	121	74.2	43.8	31.2	25.2	21.5	14.8	12.2	6.47
9.9V	254	197	118	73	43.6	31	25.1	21.4	14.7	12.2	6.46
10.2V	243	190	115	71.2	43.2	30.8	24.9	21.3	14.6	12.2	6.44
10.5V	233	183	112	69.7	42.6	30.6	24.7	21.1	14.5	12.1	6.4
10.8V	220	173	108	67.6	41.5	29.7	24	20.5	14.1	12	6.36

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	2825	2214	1353	845	508	367	297	255	176	146	77.7
9.90V	2741	2160	1326	833	505	365	295	253	175	146	77.5
10.2V	2628	2081	1285	812	500	362	293	251	174	145	77.3
10.5V	2514	2010	1254	795	493	360	291	250	172	144	76.9
10.8V	2373	1904	1208	770	480	349	282	242	167	143	76.3

>Discharge diagram

>Production process

>Workshop scene

>DAILY MAINTENANCE AND OPERATION

Discharge

Do not let the terminal voltage drop below the terminal voltage
Do not leave the battery in a discharged condition. Recharge it immediately. Also when the battery has been over discharged by mistake, recharge it immediately.
The maximum permissible discharge current 6C amps discharge for 5 seconds or less, do not exceed this value, otherwise it may damage the battery.

Charge

Float charge
The floating charge voltage should remain constant
The effects of too high or too low a floating charge voltage is as follows:
Too high for extended period (overcharge): it may shorten battery life
Too low for extended period (undercharge): it may not meet load or cause variances in battery voltage that will decrease the capacity of battery pack and shorten their life.
Recovery charge
When resuming charging, the initial current should be limited to 0.1C-0.3CA
Temperature compensation
When the temperature deviates from 25℃, please modify the voltage as 3mv/cell fo every 1C deviation.
The equalizing charge
The equalizing charge voltage is 2.30 - 2.35V/cell.
Cautions during charge
(a)If the charge current exceeds 0.05CA at the final stage of charge, the storage batter may be permanently damaged in appearance and life. Pay special.attention to charging voltage.
(b)The battery charger should be the one that can provide automatic constant voltage with drooping characteristics, if other types will be used, please contact us before applied.

STORAGE

1. When you wish to store the battery, battery should be stored without charger and load at dry location with low temperature.
2. If batteries are stored for a long period, give a supplementary charge before use.
