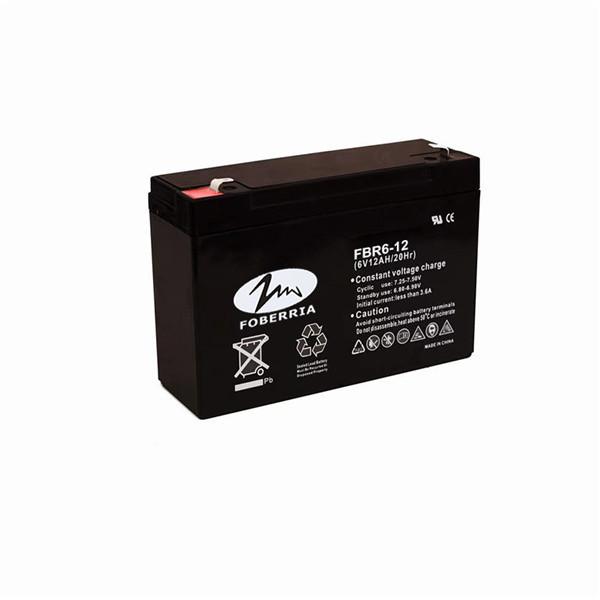

6v12ah rechargeable sealed lead acid battery UPS Lead Acid Battery 1.75kg Maintenance Free

1.Sealed Construction:Unique structure and Sealing Technology make sure that no electrolyte leaks from terminal or shell.

2.The super -thin glass fiber in separator :Reducing the short circuit of plates group .

>Main Features

1. Using oxygen recombination technology: maintenance-free;

2. PbCaSn alloy for plate grids: less gassing, less self-discharging;

3. High quality AGM separator: extend cycle life and prevent micro short circuit;

4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);

5. High purity raw material: ensure low self discharge rate;

6. 100% Pre-delivery inspection to ensure stable quality and reliable performance.

>Specification

Battery Model No.		FBR6V12Ah
Nominal Voltage		6V
Capacity	20HR(5.25V)	12Ah
(25ºC)	10HR(5.25V)	11Ah
	1HR(4.80V)	7.8Ah
Dimension	Length	151±1.5mm
	Width	50±1mm
	Height	94±1mm
	Total height	100±1mm
Approx. Weight		1.75kg±5%
Terminal type		F1
Internal resistance		Approx 12mΩ
(Fully charged,25ºC)
Capacity affected by	40ºC	102%
Temperature(20HR)	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge(25ºC)	3month	Remaining Capacity:91%
	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating	Discharge	-15ºC-50ºC(5ºF-122ºF)
temperature range	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage (25ºC)		13.5 to 13.8V Temperature compensation:-18mV/ºC
Cyclic charging voltage (25ºC)		14.5 to 15V Temperature compensation:-30mV/ºC
Max charging current		3.6A
Max discharging current		180A(5sec.)
Designed floating life(20ºC)		5years

>Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	262	202	121	74.2	43.8	31.2	25.2	21.5	14.8	12.2	6.47
9.9V	254	197	118	73	43.6	31	25.1	21.4	14.7	12.2	6.46
10.2V	243	190	115	71.2	43.2	30.8	24.9	21.3	14.6	12.2	6.44
10.5V	233	183	112	69.7	42.6	30.6	24.7	21.1	14.5	12.1	6.4
10.8V	220	173	108	67.6	41.5	29.7	24	20.5	14.1	12	6.36

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	2825	2214	1353	845	508	367	297	255	176	146	77.7
9.90V	2741	2160	1326	833	505	365	295	253	175	146	77.5
10.2V	2628	2081	1285	812	500	362	293	251	174	145	77.3
10.5V	2514	2010	1254	795	493	360	291	250	172	144	76.9
10.8V	2373	1904	1208	770	480	349	282	242	167	143	76.3

>Discharge diagram

>Application

1.Solar/wind energy storage system.

2.Industrial generating system.

3.Remote control system.

4.Telecom system.

5.UPS system.

6.Lift/bank system.

7.Server room.

>Production process

>Workshop scene

>FAQ

Q1: How to choose the right battery?
A1: Tell us what you need, and then our sales staff will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?
A2: Yes, we have MOQ for mass production, it depends on the different model numbers. 50-500pcs sample order is available. for sample checking is available.

Q3. Is it OK to print my logo on the product?
A3: Yes.Please inform us officially before production and confirm the design according to our samples.

Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate do you have in your company?
A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6.What is your warranty time for VRLA battery ?
A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.

Q7. Why battery has different capacity at different hour rate?
A7: The capacity of the battery (unit: AHS) is a dynamic number, which depends on the discharge current. For example, a battery discharged at 10A has a larger capacity than a battery discharged at 100A.With the 20-hr rate.The battery can provide more ahs than 2-hour rate because 20 hour rate uses lower discharge current than 2-hour rate.

Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?
A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.

Q9. How to proceed with an order?
A9. Firstly let us know your requirements or application. Secondly, We offer according to your request or our suggestion.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.

Q10: When is the delivery time?
A10: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
