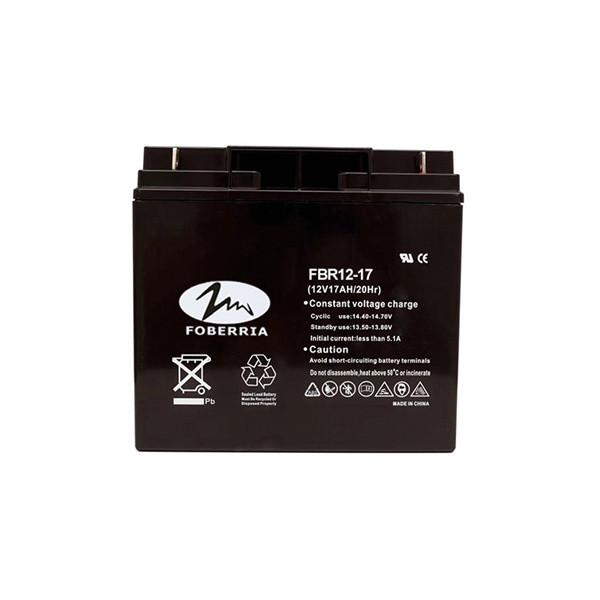

Small Size Lead Acid Sealed Battery 12v 17ah Sealed Lead Acid Battery For Light System

>Specification

Battery Model No.		FBR12-17(12V17Ah)
Nominal Voltage		12V
Capacity(25ºC)	20HR(10.5V)	17Ah
	10HR(10.5V)	16Ah
	1HR(9.60V)	11Ah
Dimension	Length	181±2mm
	Width	77±1mm
	Height	167±2mm
	Total height	167±2mm
Approx. Weight		5.1kg±5%
Terminal type		F17/F18
Internal resistance(Fully charged,25ºC)		18mΩ
Capacity affected by	40ºC	102%
temperature(20HR)	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge(25ºC)	3month	Remaining Capacity:91%
	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating	Discharge	-15ºC-50ºC(5ºF-122ºF)
temperature range	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage(25ºC)		13.6 to 13.8V
		Temperature compensation:-18mV/ºC
Cyclic charging voltage(25ºC)		14.5 to 15V
		Temperature compensation:-30mV/ºC
Max charging current		5.1A
Max discharging current		255A(5sec.)
Designed floating life(20ºC)		5years

>Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

>Main Features

1.Maintenance free sealed lead acid battery

As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside.

so refilling is not needed and is leak proof.

2.No memory effect

Some Sealed Lead Acid batteries .say nickel –cadmium batteries will become conditioned to provide less power offer repetitious short

usage /discharge.

3.Low self discharge

The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .

temperature compared with 20-30% for other common battery systems.

4.Longer service life

Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.

5.High discharge rate

Since the internal resistance is low .the battery can provide high rate of discharge.

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	5min	10min	15min	30min	60min	2h	3h	4h	5h	10h	20h
9.6V	41.1	32.1	18.1	11.1	6.09	4.21	3.49	2.97	1.92	1.61	0.86
9.9V	39.9	31.4	17.7	11.0	6.06	4.19	3.46	2.95	1.91	1.60	0.86
10.2V	38.3	30.2	17.2	10.7	6.00	4.16	3.44	2.93	1.90	1.60	0.86
10.5V	36.6	29.2	16.8	10.5	5.91	4.13	3.42	2.91	1.89	1.59	0.85
10.8V	34.6	27.6	16.2	10.2	5.76	4.01	3.31	2.82	1.83	1.55	0.83

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	5min	10min	15min	30min	60min	2h	3h	4h	5h	10h	20h
9.60V	464	366	207	129	71.3	50.1	41.5	35.4	23.1	19.3	10.4
9.90V	450	357	203	127	70.8	49.8	41.3	35.2	23.0	19.2	10.3
10.2V	432	344	197	124	70.2	49.4	41.0	35.0	22.8	19.1	10.3
10.5V	413	333	192	121	69.2	49.1	40.7	34.7	22.6	19.0	10.2
10.8V	390	315	185	118	67.4	47.6	39.5	33.7	22.0	18.7	10.0

>Discharge diagram

>Application

1.Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2.Wind Power System;

3. UPS and computer backup power;

4. telecommunication system;

5. Power station System;

6. Railway System;

7. Emergency lighting system;

8. Automatic control system;

9. Alarm system for fire protection, security.
