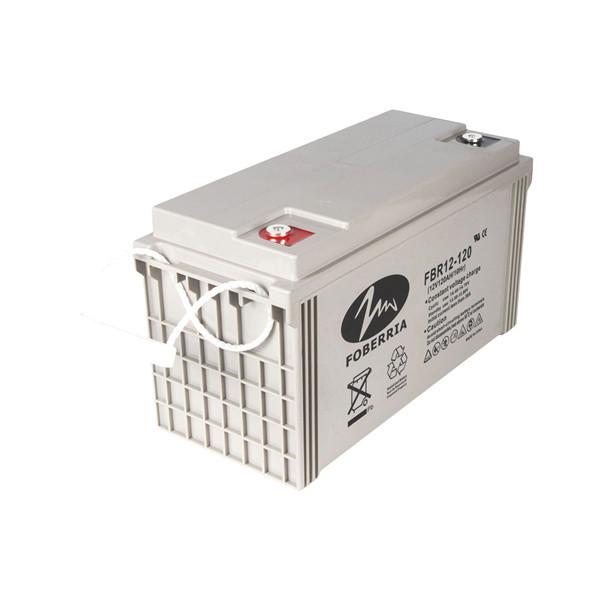

Sealed Maintenance-free vrla 12v 120ah lead acid battery for wind system

>Main Features

1.Using oxygen recombination technology: maintenance-free;

2.PbCaSn alloy for plate grids: less gassing, less self-discharging;

3.High quality AGM separator: extend cycle life and prevent micro short circuit;

4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);

5.High purity raw material: ensure low self discharge rate;

6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity.

>Specification

Battery Model No.		FBR12V120Ah
Nominal Voltage		12V
Capacity	20HR(5.25V)	120Ah
(25ºC)	10HR(5.25V)	105Ah
	1HR(4.80V)	74Ah
Dimension	Length	281±2mm
	Width	267±2mm
	Height	207±2mm
	Total height	210±2mm
Approx. Weight		37.5kg±4%
Terminal type		F13
Internal resistance		Approx 4mΩ
(Fully charged,25ºC)
Capacity affected by	40ºC	102%
Temperature(20HR)	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge(25ºC)	3month	Remaining Capacity:91%
	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating	Discharge	-15ºC-50ºC(5ºF-122ºF)
temperature range	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage (25ºC)		13.5 to 13.8V Temperature compensation:-18mV/ºC
Cyclic charging voltage (25ºC)		14.5 to 15V Temperature compensation:-30mV/ºC
Max charging current		36A
Max discharging current		960A(5sec.)
Designed floating life(20ºC)		10years

>Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	262	202	121	74.2	43.8	31.2	25.2	21.5	14.8	12.2	6.47
9.9V	254	197	118	73	43.6	31	25.1	21.4	14.7	12.2	6.46
10.2V	243	190	115	71.2	43.2	30.8	24.9	21.3	14.6	12.2	6.44
10.5V	233	183	112	69.7	42.6	30.6	24.7	21.1	14.5	12.1	6.4
10.8V	220	173	108	67.6	41.5	29.7	24	20.5	14.1	12	6.36

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	2825	2214	1353	845	508	367	297	255	176	146	77.7
9.90V	2741	2160	1326	833	505	365	295	253	175	146	77.5
10.2V	2628	2081	1285	812	500	362	293	251	174	145	77.3
10.5V	2514	2010	1254	795	493	360	291	250	172	144	76.9
10.8V	2373	1904	1208	770	480	349	282	242	167	143	76.3

>Discharge diagram

>Application

1.Solar and wind energy storage system;

2.EPS and UPS battery backup;

3.Signal system , emergency lighting system , security system;

4.Telecommunication Equipment;

5.Power source for portable devices or tools.
