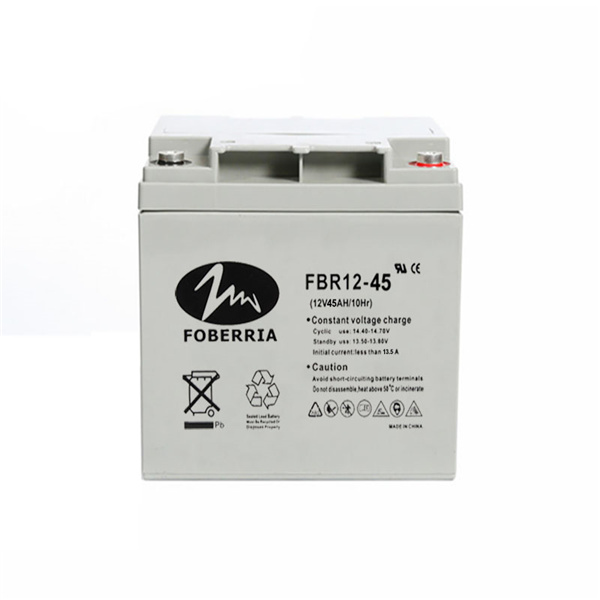

12 Volt Sealed Lead Acid Battery 12v 40ah 45ah Maintenance-Free Rechargeable Battery

> Main Features

1. No memory effect

Some Sealed Lead Acid batteries say nickel –cadmium batteries will become conditioned to provide less power offer repetitious

short usage /discharge.

2. Maintenance free

As it is valve-regulated rechargeable sealed lead acid battery.sealed and glass mat is utilized .acid is trapped inside.

so refilling is not needed and is leak proof.

3. Low self discharge

The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .temperature compared with 20-30%

for other common battery systems.

4. Longer service life

Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.

5. High discharge rate

Since the internal resistance is low .the battery can provide high rate of discharge.

6. Wide operation temperature range

VRLA Sealed Lead Acid Battery capacity is rated at 25°C , and will operate from 15°C +50°C when it is fly charged Ambient temperature

is 25°C.Service life will be more efficient under 15’C to 25”C .

> Specification

Battery Model No.		FBR12V40Ah
Nominal Voltage		12V
Capacity	20HR(5.25V)	40Ah
(25ºC)	10HR(5.25V)	35Ah
	1HR(4.80V)	24.5Ah
Dimension	Length	197±2mm
	Width	165±2mm
	Height	175±2mm
	Total height	175±2mm
Approx. Weight		12.5kg±4%
Terminal type		F14
Internal resistance		Approx 8.5mΩ
(Fully charged,25ºC)
Capacity affected by	40ºC	102%
Temperature(20HR)	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge(25ºC)	3month	Remaining Capacity:91%
	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating	Discharge	-15ºC-50ºC(5ºF-122ºF)
temperature range	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage (25ºC)		13.5 to 13.8V Temperature compensation:-18mV/ºC
Cyclic charging voltage (25ºC)		14.5 to 15V Temperature compensation:-30mV/ºC
Max charging current		12A
Max discharging current		400A(5sec.)
Designed floating life(20ºC)		10years

> Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

> Application

1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2. Wind Power System;

3. UPS and computer backup power;

4. Telecommunication system;

5. Power station System;

6. Railway System;

7. Emergency lighting system;

8. Alarm system for fire protection, security.

> Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	87.2	67.2	40.2	24.7	14.6	10.4	8.4	7.18	4.94	4.07	2.16
9.9V	84.6	65.6	39.4	24.3	14.5	10.3	8.36	7.14	4.91	4.06	2.15
10.2V	81.1	63.2	38.2	23.7	14.4	10.3	8.3	7.09	4.87	4.05	2.13
10.5V	77.6	61	37.3	23.2	14.2	10.2	8.24	7.04	4.84	4.03	2.13
10.8V	73.2	57.8	35.9	22.5	13.8	9.89	7.99	6.83	4.69	4	2.12

> Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	942	738	451	282	169	122	98.8	84.9	58.6	48.6	25.9
9.90V	914	720	442	278	168	122	98.3	84.4	58.3	48.5	25.8
10.2V	876	694	428	271	167	121	97.6	83.8	57.9	48.4	25.8
10.5V	838	670	418	265	164	120	96.9	83.2	57.5	48.1	25.6
10.8V	791	635	403	257	160	116	94	80.7	55.8	47.8	25.4

> Discharge diagram

> Production process

SUZHOU FOBERRIA NEW ENERGY TECHNOLOGY CO.,LTD.

"Established in 2012 ,but we start from 2009 ,So we have 10+years experience in lead acid battery.

At the beginning we build the big professional team in the battery production ,So we know everything in the battery production

and we can supply the self -service based on customer requirements. We reorganized from Jiangsu Storage Battery Factory,

professional in the researching, manufacturing and developing of VRLA battery.

Producing products include:

• AGM Batteries

• GEL Batteries

• OPzV Battery

• Flooded Acid Batteries

• Off Grid Solar Batteries

• Solar GEL Batteries

• Telecom Batteries

• Car/Auto Batteries

• Front Terminal Battery

• Lithium batteries and so on.

we have advanced plate casting and pasting machine with the fully automatic assembly lines. And we are going to keep advanced

level in the world.With years of production experience and strong production force, stable and reliable product quality, has won the

confidence of domestic and foreign merchants.

Our products are widely used in UPS,Motorcycle,Automobile ,Electric vehicle,Tourist car,Marine Equipment,Electric Power System,

Solar Power System,Wind Power System,etc. They have a good reputation in domestic and foreign markets.

Our batteries are hot saled in many countries,like as Russia,Turkey,Morocco,Vietnam,Iran,Venezuela and other south America countries.

Even then our products occupied 75% in Russian market.
