Maintenance Free Gel Or Lead Acid Battery 12v 90ah 100ah Lead Acid Gel Battery For Communication

> Main Features

Deep Cycle battery for short DC series is specially designed for frequent cyclic performance.

By using strong grids and specially designed active material, the Deep Cycle battery offers more cyclic life than standby series.

1. Structure: compact design,shorter internal connectors between cells, thus low internal reisistance;

2. Plate: Pasted flat type, with patent deep cycle formula of AM;

3. Terminal: two or more types terminals are convenient for selection Vent system: gases can be vented through flame arrester/ filter;

4. Separator: using improved AGM separator, makes lower resistance higher assembling pressure to increase deep cycle life;

5. Battery case: made of high strength ABS(UL 94-HB) and UL 94-V0 is optional;

6. Terminal sealing; double sealing technics(mechanical + epoxy gule).

> Specification

Battery Model No.		FDC12V90Ah
Nominal Voltage		12V
Capacity	20HR(5.25V)	90Ah
(25ºC)	10HR(5.25V)	79Ah
	1HR(4.80V)	55.6Ah
Dimension	Length	306±2mm
	Width	169±2mm
	Height	211±2mm
	Total height	214±2mm
Approx. Weight		27kg±4%
Terminal type		F14
Internal resistance		Approx 5mΩ
(Fully charged,25ºC)
Capacity affected by	40ºC	102%
temperature(20HR)	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge	3month	Remaining Capacity:91%
(25ºC)	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating	Discharge	-15ºC-50ºC(5ºF-122ºF)
temperature range	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage		13.5 to 13.8V
(25ºC)		Temperature compensation:-18mV/ºC
Cyclic charging voltage		14.5 to 15V
(25ºC)		Temperature compensation:-30mV/ºC
Max charging current		27A
Max discharging current		800A(5sec.)
Designed floating life(20ºC)		10years

> Structure and composition

>Application

It is widely used in communication equipment, aviation signal, railway signal,alarm and safety system,

instrument and instrument system,solar energy systems, marine and RV etc.

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	196	151	90.5	55.6	32.9	23.4	18.9	16.2	11.1	9.16	4.86
9.9V	190	148	88.6	54.8	32.7	23.3	18.8	16.1	11	9.14	4.85
10.2V	182	142	85.9	53.4	32.4	23.1	18.7	16	11	9.12	4.83
10.5V	175	137	83.8	52.3	31.9	23	18.5	15.8	10.9	9.06	4.8
10.8V	165	130	80.8	50.7	31.1	22.3	18	15.4	10.6	9	4.77

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	2119	1660	1015	634	381	275	222	191	132	109	58.3
9.90V	2055	1620	995	625	379	274	221	190	131	109	58.2
10.2V	1971	1561	964	609	375	272	220	189	130	109	58
10.5V	1886	1507	941	596	370	270	218	187	129	108	57.6
10.8V	1780	1428	906	578	360	262	211	182	125	107	57.2

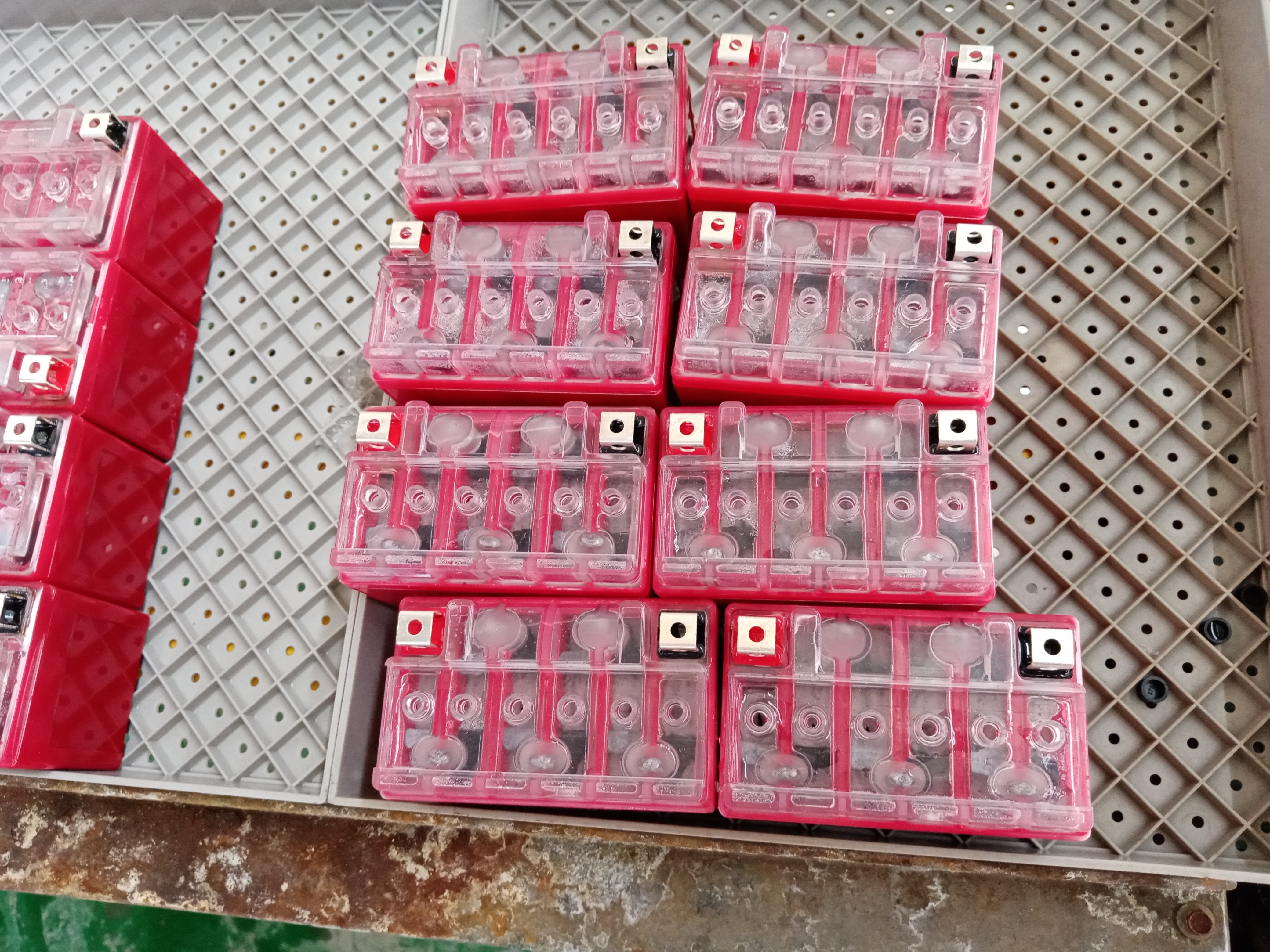

>Workshop scene

>FAQ

Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers.

50-500pcs sample order is available. for sample checking is available.

Q3. Is it OK to print my logo on the product?

A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?

A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate your company have?

A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.
