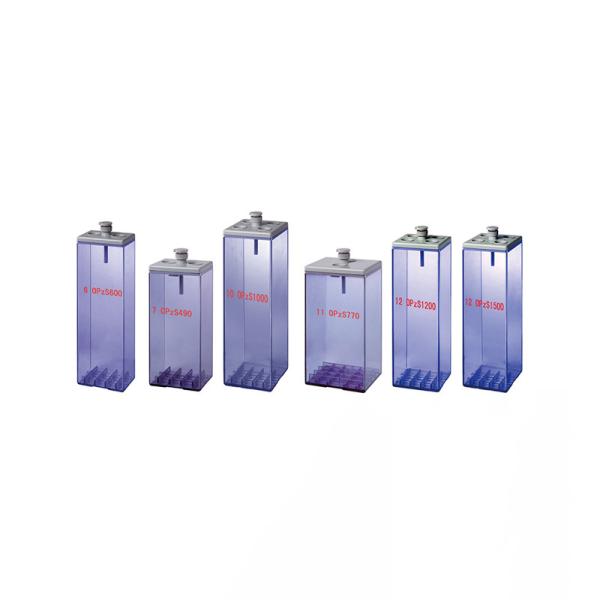

Solar Opzs Flooded Lead Acid Tubular Battery 2v200ah 400ah 600ah 800ah 1000ah 3000ah Opzs Battery

Gel OPZV 2V 500ah 1000ah 1500ah tubular gel battery for solar energy system and telecom

• Over 20 years design life at floating condition @ 25°C
• Wide operating temperature range from -40°C to 60°C
• Tubular positive plate with prolonged cycle life
• Lead Calcium die cast grid with improved corrosion resistance capability
• Low self-discharge rate and long shelf life
• Excellent deep discharge recovery capability

>Construction

• Positive plates Tubular plates with die cast Pb-Ca alloy grid
• Negative plates – Balanced lead-calcium grids for improve recombination efficiency
• Separators – leaf shape PVC-SiO separators
• Electrolyte – Dilute chemical grade sulphuric acid of 1.240 specific gravity
• Battery container and cover – UL94 V0 flame retardant SAN
• Pillar seal – 100% factory tested, proven two layers epoxy resin seal
• Relief valve – Complete with integrated flame arrestor

>Specification For OPzS Battery series

Voltage	Voltage	Capacity	Internal resistance(mm)				Terminal Type	Dry Weight (Kg)	Wet Weight (Kg)
	(V)	(Ah)	Length	Width	Height	Total Height
OPzS 200	2	200	103	206	355	410	F12	13	17.5
OPzS 250	2	250	124	206	355	410	F12	15	20.5
OPzS 300	2	300	145	206	355	410	F12	17.5	24
OPzS 350	2	350	124	206	471	526	F12	21	28
OPzS 420	2	420	145	206	471	526	F12	23	32
OPzS 490	2	490	166	206	471	526	F12	26.5	37.5
OPzS 600	2	600	145	206	646	701	F12	35	47
OPzS 800	2	800	191	210	646	701	F12	48	64
OPzS 1000	2	1000	233	210	646	701	F12	58	78
OPzS 1200	2	1200	275	210	646	701	F12	68	92
OPzS 1500	2	1500	275	210	796	851	F12	80	111
OPzS 2000	2	2000	397	212	772	827	F12	110	152
OPzS 2500	2	2500	487	212	772	827	F12	132	185
OPzS 3000	2	3000	576	212	772	827	F12	159	222

>Application

• Power generation plants
• Electrical utilities applications
• Telecommunications
• Microwave radio systems
• Emergency lighting
• Outdoor enclosures
• Photovoltaic applications

> Charging Voltage and Setting

• Constant voltage charging is recommended
• Recommended float charge voltage: 2.23VPC @20-25°C
• Float voltage temperature compensation: -3mV/°C/cell
• Float voltage range: 2.20 to 2.23 VPC@20- 25°C
• Cyclic application charge voltage : 2.35V/cell
• Max charge current allowable : 0.25C10A

>Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	PVC-SiO2	Sulfuric acid	EPDR	Copper

>Application

It is widely used in communication equipment, UPS/EPS power supply, medical equipment, emergency lamp,

aviation signal, railway signal,alarm and safety system, instrument and instrument system.

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	436	336	201	124	73.1	52	42	35.9	24.7	20.4	10.8
9.9V	423	328	197	122	72.6	51.7	41.8	35.7	24.5	20.3	10.8
10.2V	405	316	191	119	72	51.4	41.5	35.4	24.4	20.3	10.7
10.5V	388	305	186	116	70.9	51	41.2	35.2	24.2	20.1	10.7
10.8V	366	289	179	113	69.1	49.5	41	34.1	23.5	20	10.6

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	4709	3689	2255	1409	846	612	494	424	293	243	129
9.90V	4568	3601	2210	1388	841	608	491	422	292	243	129
10.2V	4379	2468	2142	1353	834	604	488	419	290	242	129
10.5V	4191	3350	2091	1324	821	600	485	416	287	240	128
10.8V	3955	3173	2014	1284	800	582	470	404	279	239	127

>Production process

>Workshop scene

>FAQ

Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers.

50-500pcs sample order is available. for sample checking is available.

Q3. Is it OK to print my logo on the product?

A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?

A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate your company have?

A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6.What is your warranty time for VRLA battery ?

A6: It depends on battery capacity, depth of discharge, and battery usage.

Please kindly contact us for accurate information based on detailed requirements.
